PATRIOT

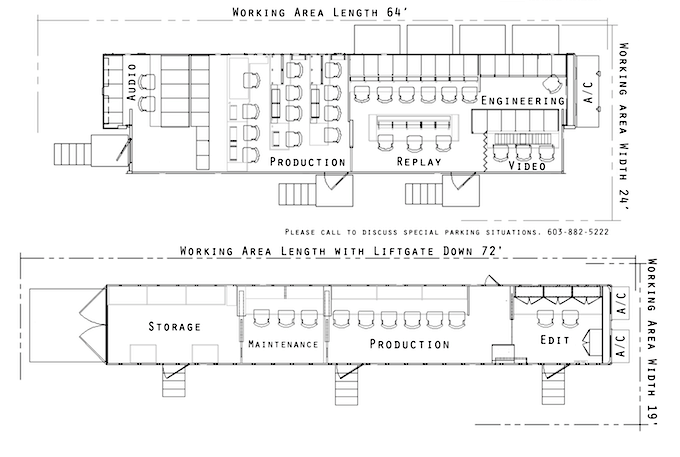

53′ Expando with a 64′ by 24′ Recommended Working Area 3G HD Production Unit
72’x19′ Expanded B-Unit
KEY FEATURES
PATRIOT A
Dimensions/Working Area: 53' Expando with a 64' by 24' Recommended Working Area
Power Requirements: 2x 208 Volt, 3-Phase, 200 Amps, or
1x 208 Volt, 3-Phase, 400 Amps
A/B Units: A Unit
PATRIOT B
Dimensions/Working Area: 72' x 19' Recommended Working Area
Power Requirements: 1x 208 Volt, 3-Phase, 200 Amps
A/B Units: B Unit
DESCRIPTION
Switcher: Grass Valley Kayenne
Audio Board: Calrec Alpha Bluefin Surround Sound Console
RTR Video: Evertz EQX 3G Video (288×288+288 Xlink)
RTR Audio: NVision Mono Audio Router 512×512 (AES & Analog)
GCV T2T Fiber: NO
Cameras: Sony HDC 1500
Replay: EVS
