BIRD
53′ Expando with a 64′ by 24′ Recommended Working Area
KEY FEATURES
Bird A
Dimensions/Working Area: 53' Expando with a 64' by 24' Minimum Working Area
Power Requirements: 2 x 208 Volt, 3-Phase, 200 Amps or 1 x 208 Volt, 3 Phase, 400 Amps
A/B Units: A Unit
Bird B
Dimensions/Working Area: 53' Expando with a 64' by 24' Minimum Working Area
Power Requirements: 1x 208 Volt, 3-Phase, 200 Amps
A/B Units: B Unit
DESCRIPTION
DESCRIPTION
Switcher: Grass Valley K-Frame-XP 192×96 via ST2110
Audio Board: Calrec ARGO Q Surround Sound Console (96×96 Analog, 128×128 Waves, 16384×16384 ST2110-30)
RTR Video A: 400G Lawo/Arista ST2110 Network. VSM Control, 592×556 SDI Gateway plus 48/192 UHD/3G UDX and 512×128 UHD multiviewer via IP. Additionally, up to 512×1024 expandable remote IPG I/O is possible.
RTR Video B: 400G Lawo/Arista ST2110 Network. VSM Control, 240×326 SDI Gateway. Additionally, up to 256×512 expandable remote IPG I/O is possible.
RTR Audio A: Lawo PowerCore Audio (96×96 Analog, 96×96 AES, 20×20 MADI, 1536×1536 Dante)
RTR Audio B: Lawo PowerCore Audio (64×64 Analog, 8×8 MADI, 1024×1024 Dante)
GCV T2T Fiber: YES x 2, T2T IP at 100G & 400G
Cameras: Up to (16) Sony HDC 5500 built out in parallel SDI and ST2110 workflows and (16) Sony HDC 5500 via ST2110
Replay: Up to (8) 12CH EVS and (2) Spotbox via ST2110
DOWNLOADS

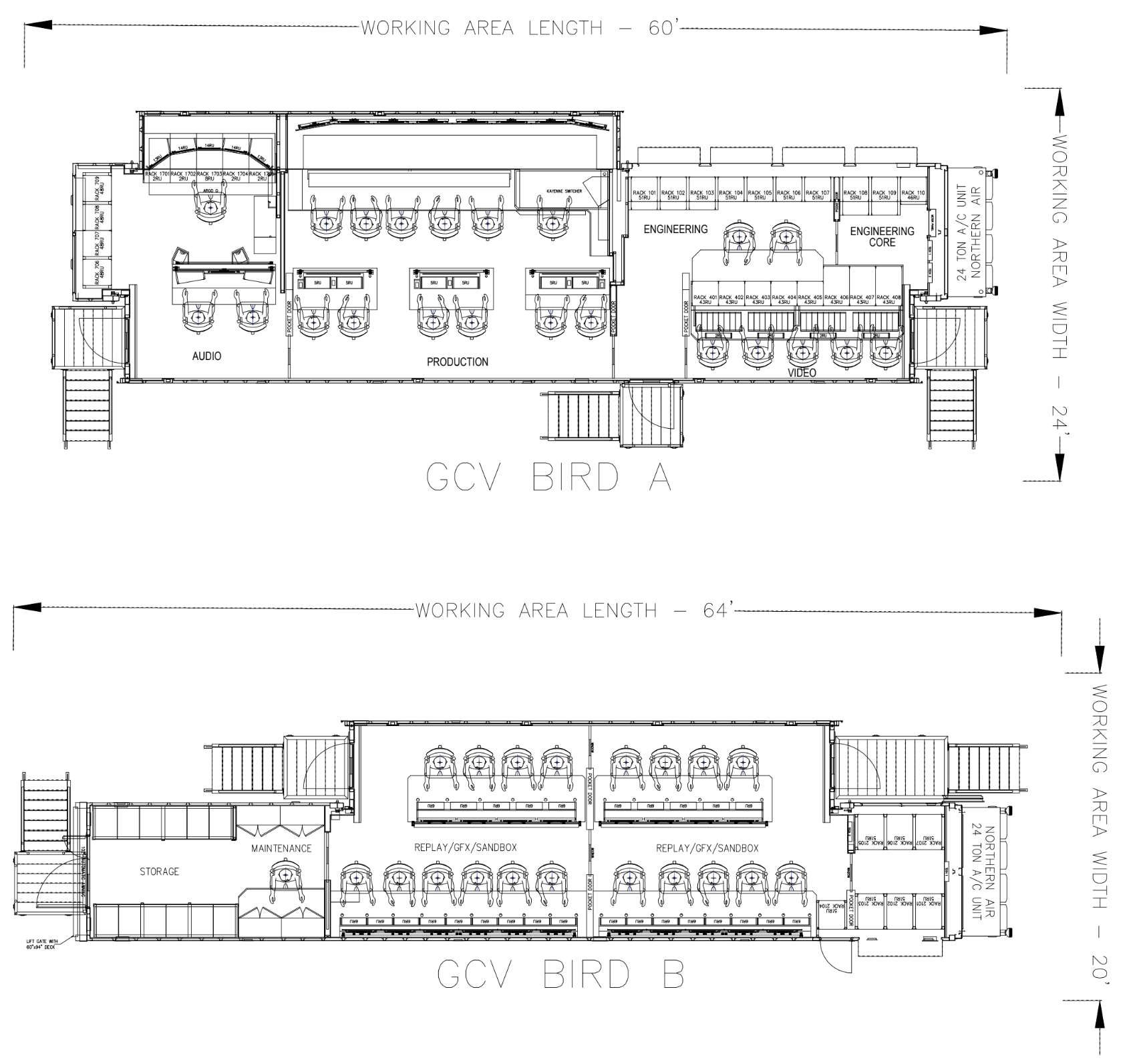

// Schematic
